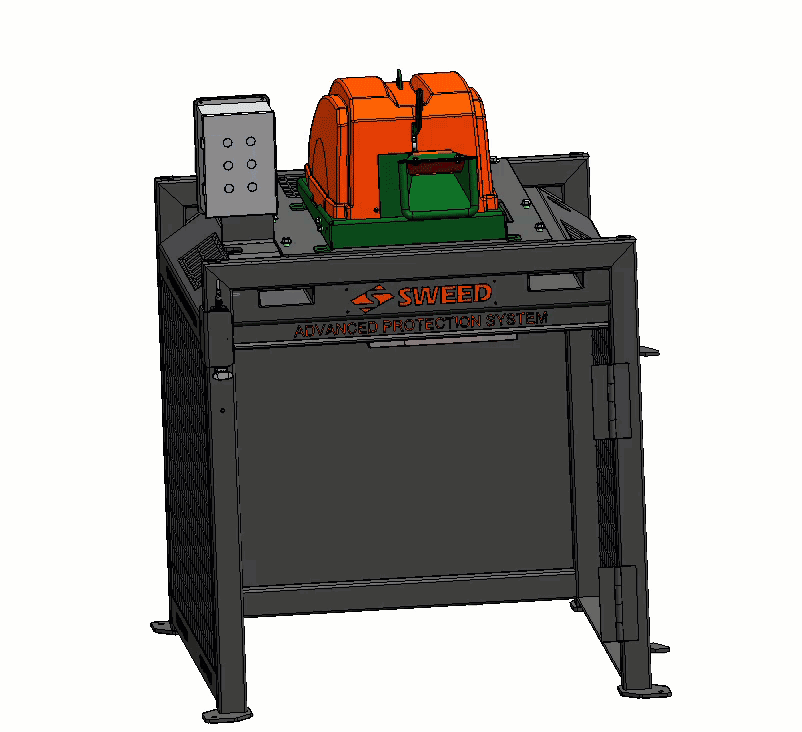

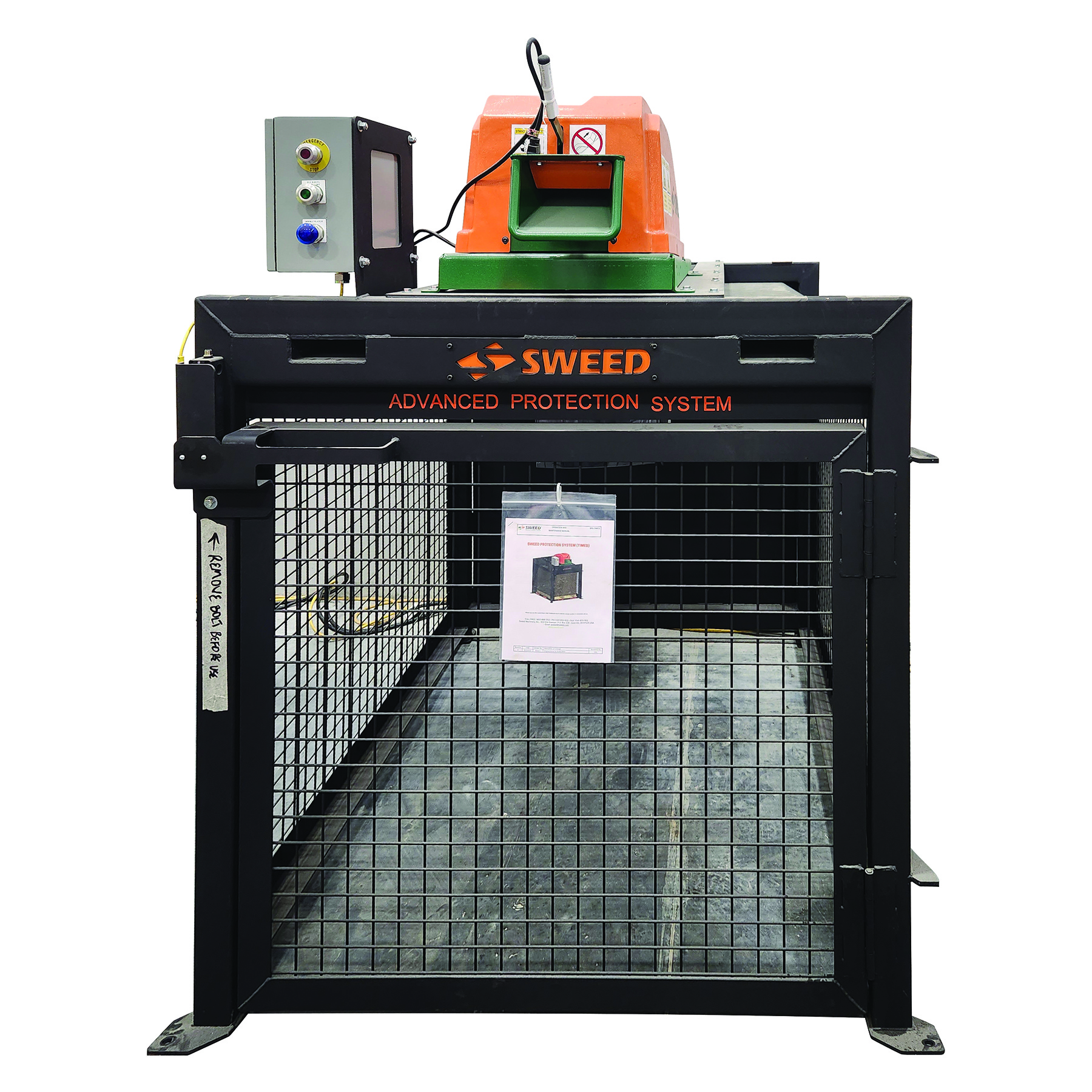

Strap Choppers

How it Works

Just introduce the material (banding) into the in-feed funnel. The feedworks (pinch roll) will then grab the material and pull it into the rotating knife path. The feedworks will continue to pull at a rate of 106 feet per minute until the material is consumed or the operator releases the feed works via the release lever.

Construction Features

  • Easy to reach “Feedworks Release” hand lever
  • Infeed Funnel with “Anti-Kickback” flap
  • Knives can be rotated (4 times) for extended life
  • Hinged front guard allows for easy routine ser-vice
  • Lincoln TEFC motor
  • Full one year warranty

Performance

  • 120 feet per minute of plastic strapping
  • Cut length – 3”
  • 1 HP motor

Dimensions

  • Feed opening – 3 1/2” x 1”
  • Overall dimensions – 36”Lx26”Wx13”H
  • Weight – 350lbs

Hopper

  • Fits a gaylord on a pallet
  • Limit switch on the door
  • Overall dimensions – 5’Lx5’Wx4’H

Electrical

  • Single phase 120 volt 60hz
  • Single phase 240 volt 60hz

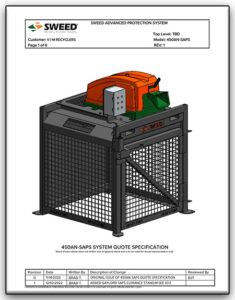

For a complete description, review the following PDF.
